Hardwire Cable for Parking Mode

Parking mode allows your dash cam to monitor your vehicle even while the engine is off. Power is delivered through the hardwire cable, which also protects the vehicle’s battery from excessive discharge.

VIOFO HK6 Hardwire Kit | White Car Sitting In Parking Lot

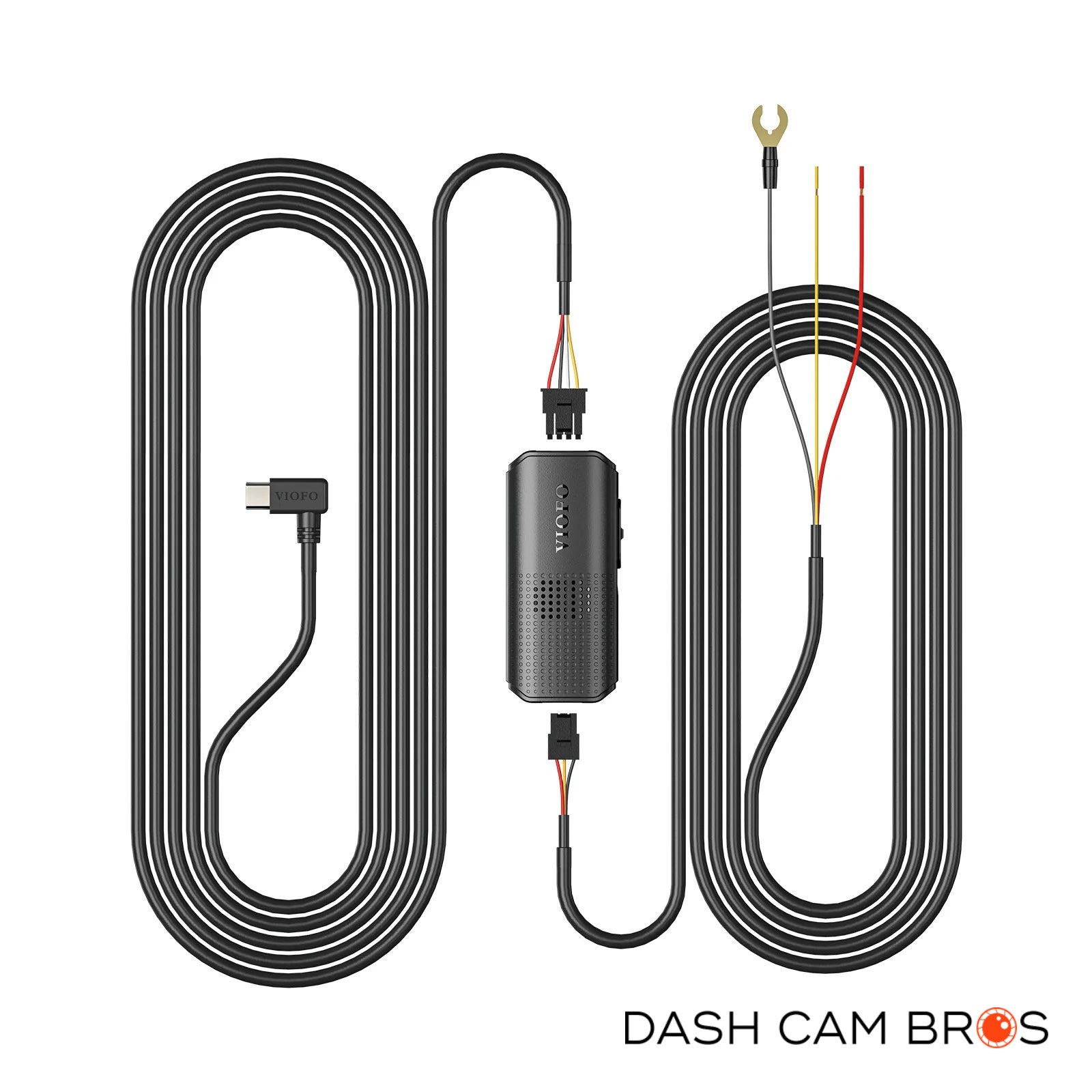

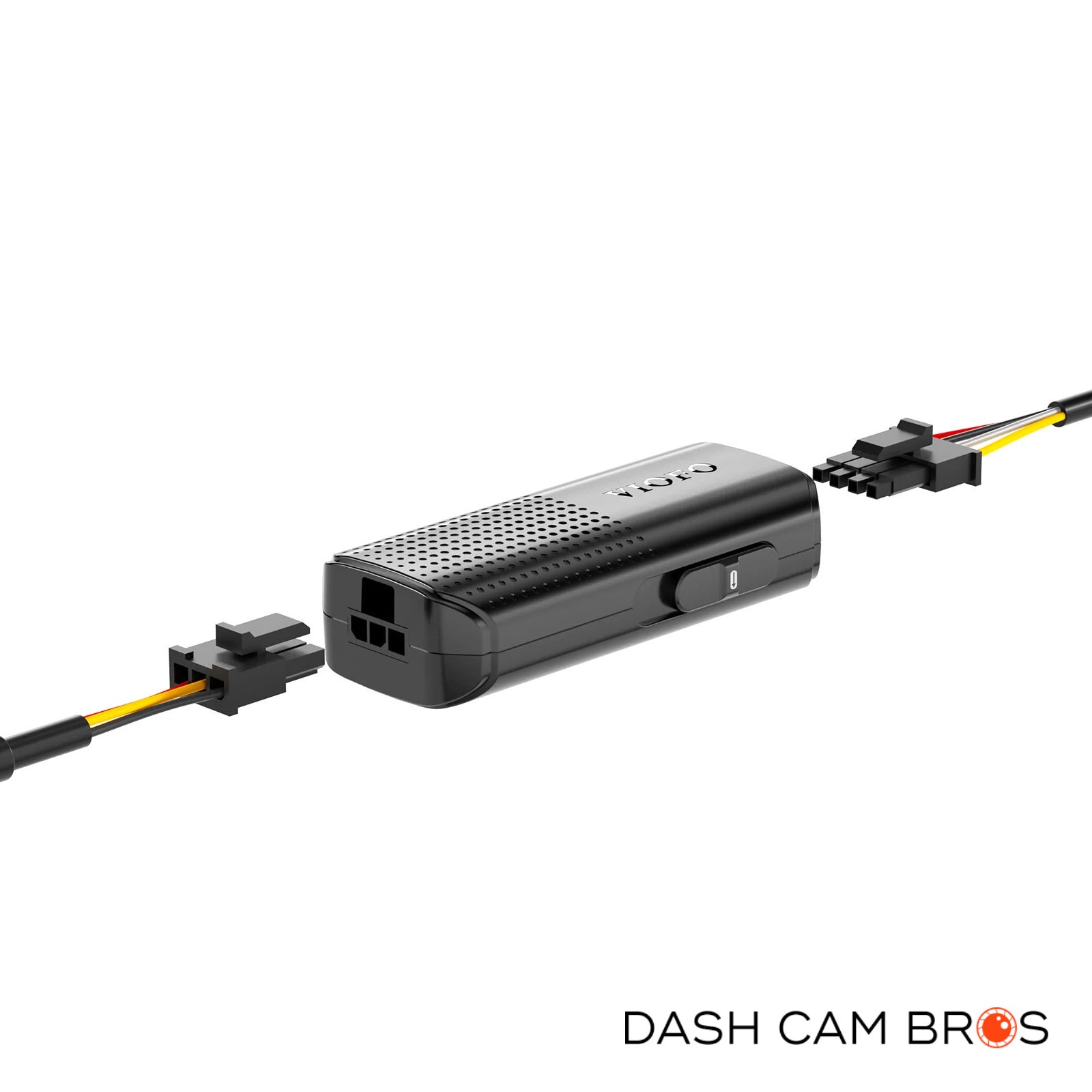

Detachable Design for Easy Upgrade & Maintenance

The HK6 features a modular design with detachable input and output cables. This plug-in connection allows for easier cable routing during installation and makes future upgrades or replacements hassle-free—no need to rewire or remove existing cables.

VIOFO HK6 Hardwire Kit | Showing Cable Connections

Automatic Voltage Display

With built-in Bluetooth, the HK6 lets you check your car’s battery voltage right on the dash cam, no setup or pairing needed. Your dashcam automatically searches for the HK6's signal, reads the voltage, and displays it on the recorded video for real-time monitoring.

VIOFO HK6 Hardwire Kit | Example Of Automatic Voltage Display

Seamless Parking Mode Switching

With ACC detection, the dash cam seamlessly enters parking mode when the vehicle's engine is turned off and resumes normal recording once the vehicle is started.

VIOFO HK6 Hardwire Kit | Battery, Ground, AC Wire Diagram

Hybrid Parking Mode for A329S Series

The HK6 Hardwire Cable supports Hybrid Parking Mode for the A329S Series, automatically switching between normal parking recording and Low-Power Impact Detection mode based on "Cut-off Voltage" and "Cut-off Time" setting.

*We recommend setting the "Cut-off Voltage" slightly higher than the value selected on the hardwire cable.

VIOFO HK6 Hardwire Kit | Examples Of Parking Modes

Battery Discharge Prevention

The HK6 powers your dash cam while parked and turns off when your battery voltage gets too low, based on your chosen setting.

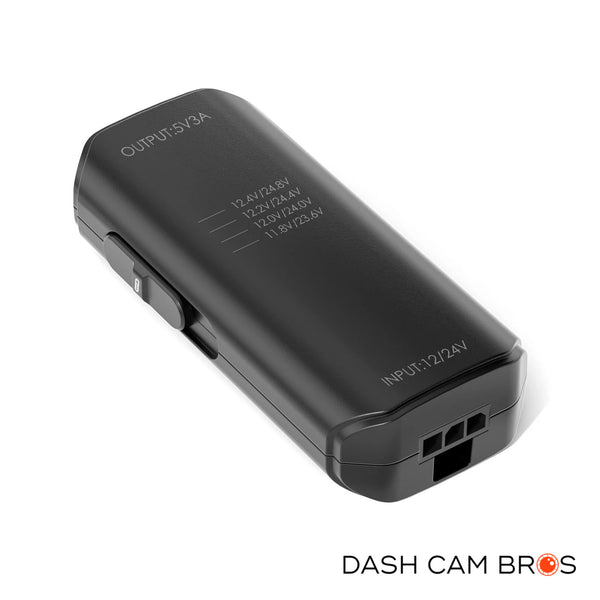

Configurable Voltage Cut-off

The VIOFO HK6 Hardwire Cable includes 4 voltage cut-off options. When your car battery drops to the selected level, it cuts power to the dash cam to help prevent battery drain.

VIOFO HK6 Hardwire Kit | Close Up Of Voltage Settings On HK6

VIOFO HK6 Hardwire Kit | Ultra-Low Power Consumption Graphic

Ultra-Low Power Consumption

The HK6 draws very little power—less than 300μA—when the dash cam is off, so you get longer parking mode coverage without stressing your battery. With the A329S Series, Low Power Impact Detection keeps watch with barely any draw:
• Standby/Sleep Mode: Only 0.24W (20mA at 12V)

* Test data based on A329S 3CH.

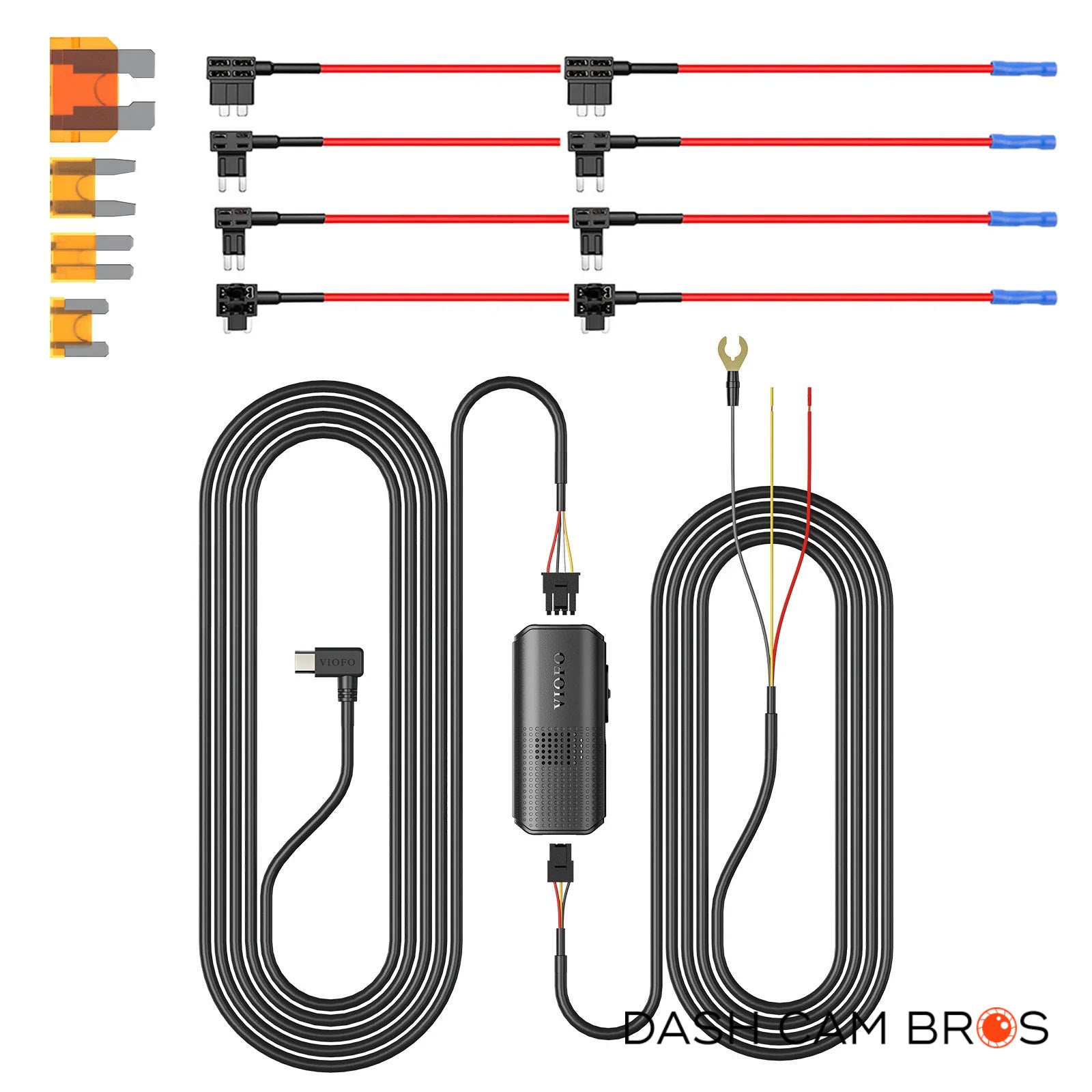

8 Piece Full Fuse Tap Set Included

This hardwire kit comes with everything you need for a clean, easy install, just plug into your fuse box; no cutting or splicing.

VIOFO HK6 Hardwire Kit | Comes With Fuse Taps For Easy Installation

12V / 24V Compatible

The HK6 Hardwire Cable connects the camera directly to cars, trucks, buses, SUVs, or big rigs for continuous power. It accepts voltage from any vehicle running on 12–24V.

VIOFO HK6 Hardwire Kit | Blue BMW Sitting In Parking Lot During Day

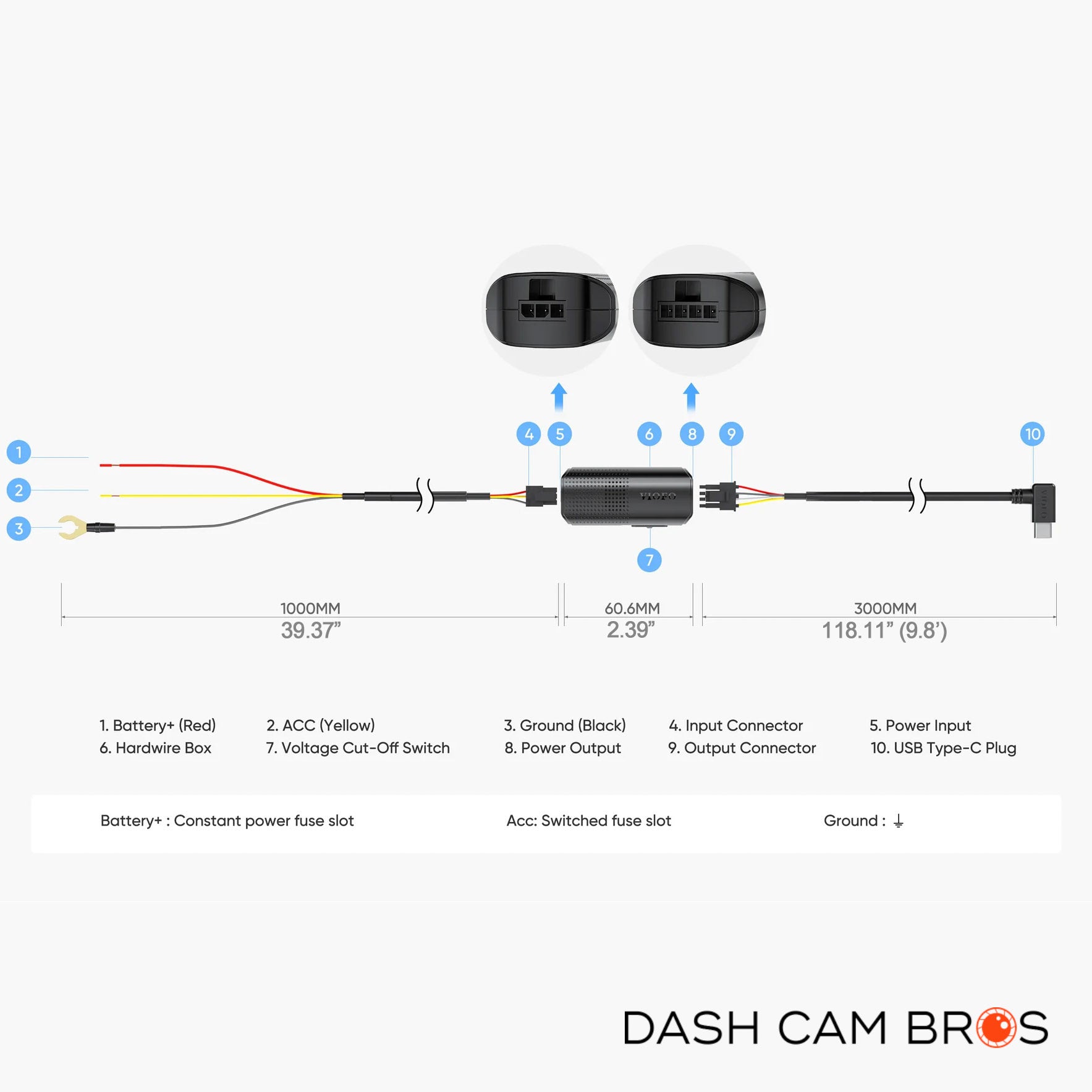

Cable Connection

VIOFO HK6 Hardwire Kit | Connection Diagram

HK6 Diagram
